STAR SCHEMA

The Star Schema is a dimensional modelling design in which a central fact table connects directly to multiple surrounding dimension tables, forming a star-like structure. The fact table stores quantitative measures of a business process, while the dimension tables provide descriptive context for analysis.

The primary goal of the star schema is to deliver a simple, high-performance, and business-friendly structure for analytics. It is designed specifically for reporting, dashboards, and self-service business intelligence, where clarity and speed are critical.

In a star schema, the fact table captures measurable events such as LoanAmount, InterestRate, ApprovalCount, or RepaymentAmount. Each row represents a clearly defined grain, such as one loan approval or one repayment transaction. The fact table contains foreign keys that link to dimension tables.

The dimension tables contain descriptive attributes used for filtering, grouping, and slicing data. Examples include:

• Dim_Customer (Segment, IncomeBand, AgeGroup)
• Dim_Officer (Branch, ExperienceYears)
• Dim_Date (Day, Month, Quarter, Year)
• Dim_Branch (City, Region)

Each dimension connects directly to the fact table. There are no deep chains of joins between dimensions. This shallow join path simplifies query logic and improves performance, particularly in analytical databases and columnar storage systems.

Consider a loan approval analytics environment. A Fact_LoanApproval table stores LoanAmount, ApprovalFlag, and ApprovalDateKey, linked to Dim_Customer, Dim_Officer, Dim_Branch, and Dim_Date. With this structure, executives and analysts can easily answer questions such as:

• What is the total loan amount approved per branch and region?
• How many loans were approved by officers with more than 10 years of experience?
• What is the average approval duration by customer income band?

Because each query typically joins the fact table directly to relevant dimensions, dashboard refresh times remain fast, even at high data volumes. The structure is intuitive: business users see familiar descriptive categories surrounding measurable business outcomes.

The strengths of the star schema include simplicity, performance, and strong alignment with BI tools. It minimizes join complexity and is easy to understand visually and conceptually. It is often considered the default dimensional design pattern for data warehouses and analytical data marts.

However, the star schema intentionally introduces redundancy in dimension tables to maintain simplicity. It is not optimized for transactional updates and does not aim to comply with higher normal forms. Its focus is analytical usability rather than relational purity.

From a modelling perspective, the star schema belongs to the Dimensional Modelling family. It is denormalized by design and optimized for OLAP workloads with predictable query patterns.

In summary, the star schema balances performance, clarity, and accessibility. It provides a structured yet business-friendly foundation for analytics, making it one of the most widely adopted patterns in modern data warehousing.

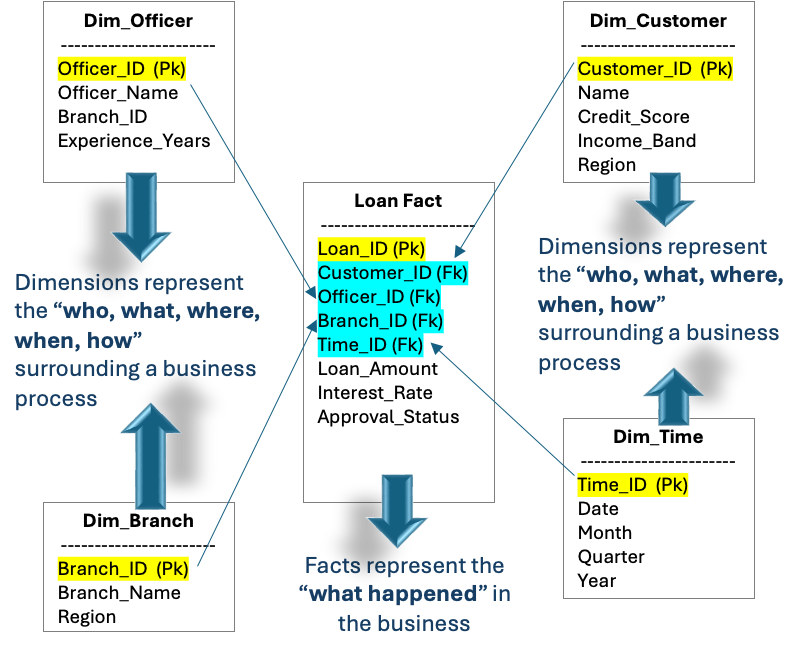

Explanation

• Fact Table: captures numeric measures of the business process (e.g., loan amount, interest rate, approval status).
• Dimension Tables: hold attributes used to slice, filter, and group analysis (e.g., customer, officer, time, branch).
• Direct links from each dimension to the fact reduce join depth and typically improve query speed and usability.
